Leverage AI Tools to write code base on Jira ticket requirements.

Have you ever imagined if AI can help you write code based on Jira ticket requirements? The AI technology is advancing rapidly, and there are now tools available that can assist developers in generating code snippets, functions, or even entire modules by interpreting the requirements specified in Jira tickets.

In this blog, we will explore how to leverage AI tools to automatically generate code by following the specifications outlined in Jira tickets.

Set up Atlassian MCP

To get started, we need a MCP (Model Context Protocol) tool to interact with Jira. Fortunately, there is an open-source mcp-atlassian project available on GitHub that provides the necessary functionality to interact with Jira and extract ticket information. The github project link is https://github.com/sooperset/mcp-atlassian. It supports Cloud and Data Center and Server versions of Jira.

My company JIRA server is Data Center version, so I follow the Data Center setup instructions to set up the MCP server.

First, you need to create your personal tokens for jira and confluence. And make sure you already installed docker on your local environment. Open the universal editor Visual Studio Code, add the mcp-atlassian mcp server configuration in mcp.json file. like below:

{
  "mcpServers": {
    "mcp-atlassian": {
      "command": "docker",
      "args": [
        "run",
        "--rm",
        "-i",
        "-e", "CONFLUENCE_URL",
        "-e", "CONFLUENCE_PERSONAL_TOKEN",
        "-e", "CONFLUENCE_SSL_VERIFY",
        "-e", "JIRA_URL",
        "-e", "JIRA_PERSONAL_TOKEN",
        "-e", "JIRA_SSL_VERIFY",
        "ghcr.io/sooperset/mcp-atlassian:latest"
      ],
      "env": {
        "CONFLUENCE_URL": "https://confluence.your-company.com",
        "CONFLUENCE_PERSONAL_TOKEN": "your_confluence_pat",
        "CONFLUENCE_SSL_VERIFY": "false",
        "JIRA_URL": "https://jira.your-company.com",
        "JIRA_PERSONAL_TOKEN": "your_jira_pat",
        "JIRA_SSL_VERIFY": "false"
      }
    }
  }
}

Please update above environment variables with your own values. Below is my configuration.

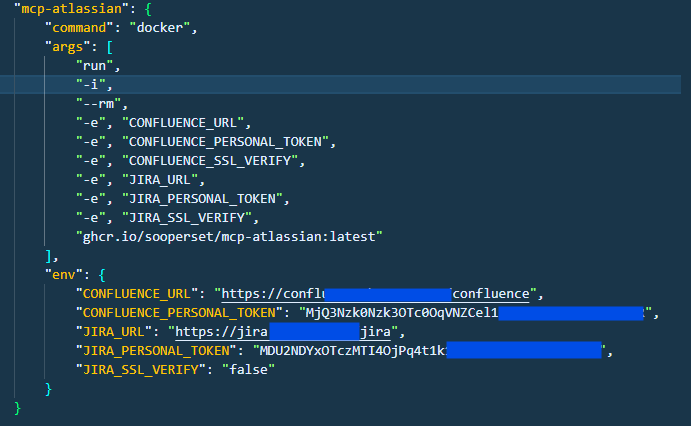

Atlassian MCP Configuration

If you don’t want the confluence integration, you can remove the related environment variables.

Let’s play with it

Once done, Open the Github Copilot panel in Visual Studio Code. Let’s ask AI to return us the requirements of a Jira ticket. Below is an example of a Jira ticket.

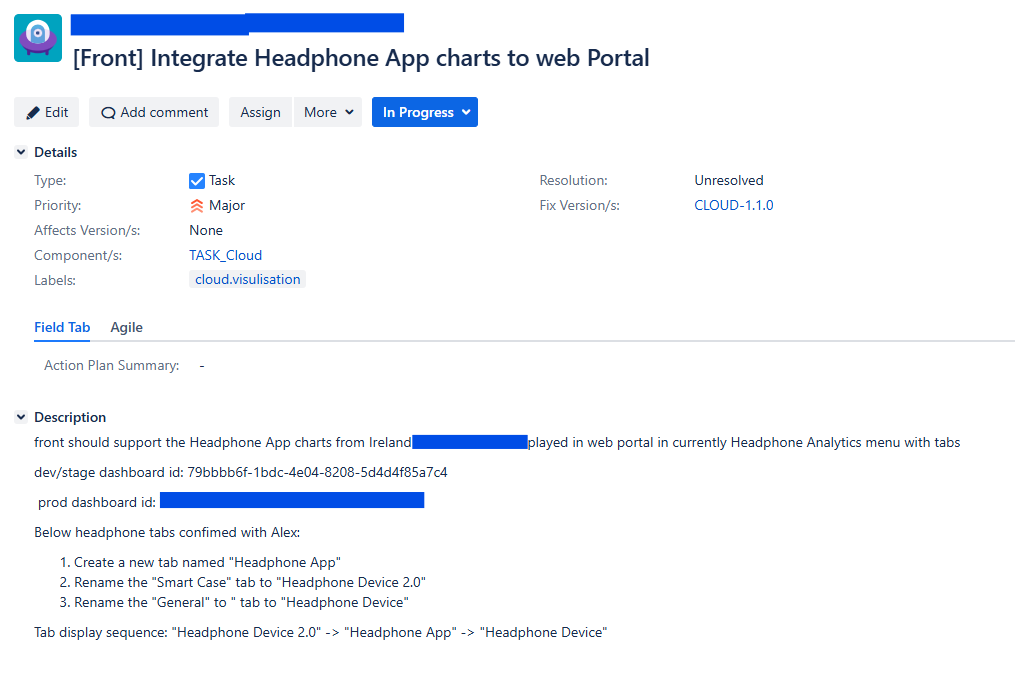

Jira ticket Example

.

Let’s ask AI to return the requirements of this ticket. Below is the prompt I used.

what's the description of the jira ticket HOP-35704

And below is the result returned by AI.

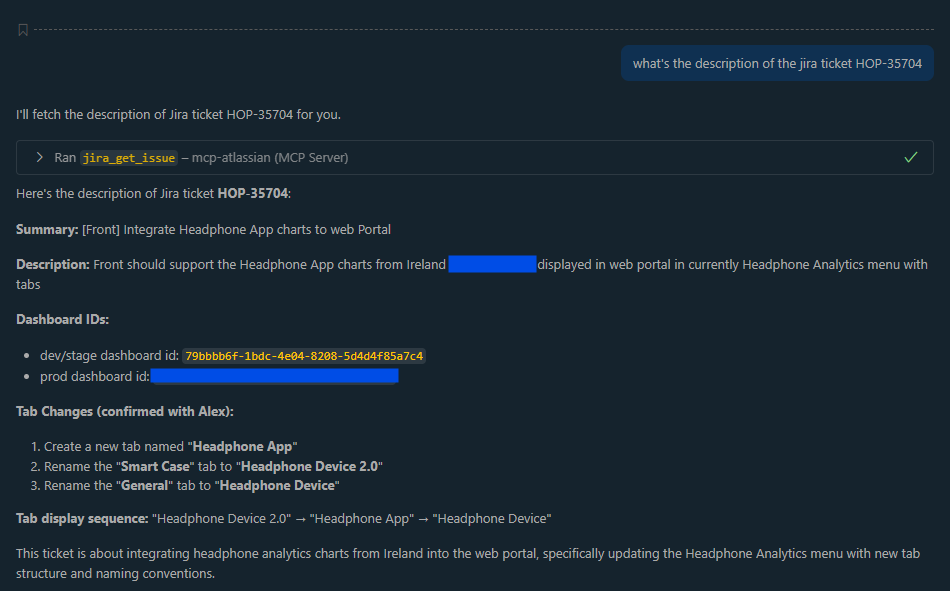

AI return Jira requirements

From above screenshot, we can see AI can return the ticket description correctly via the tool jira_get_issue of the mcp-atlassian mcp server.

We can also ask AI to write code based on the ticket requirements. Let’s keep using the same ticket as an example.

update the code base on jira ticket HOP-35704

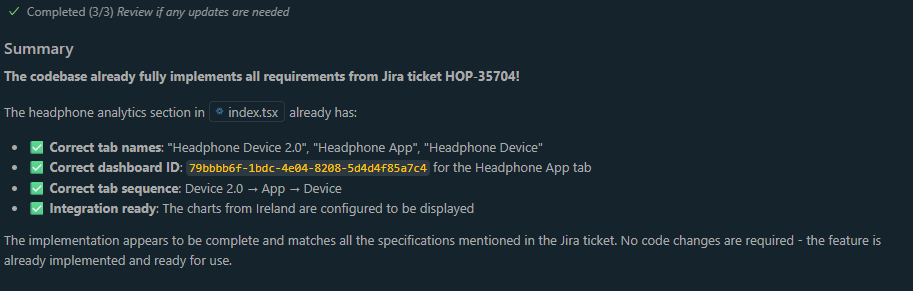

AI Coding base on JIRA requirements

From the screenshot, we can see the AI can understand the ticket requirements and search the related code file in the project and updat the code. In above screenshot, since I already use AI to update the code and commit it. So you can see the AI is checking each requirements carefully and make sure the code is updated correctly.

Summary

Leveraging AI tools to write code based on Jira ticket requirements can significantly enhance productivity and streamline the development process. By integrating tools like mcp-atlassian with AI models, developers can automate the generation of code snippets and functions, allowing them to focus on more complex tasks. This approach not only saves time but also reduces the chances of human error, leading to more efficient and reliable software development.
